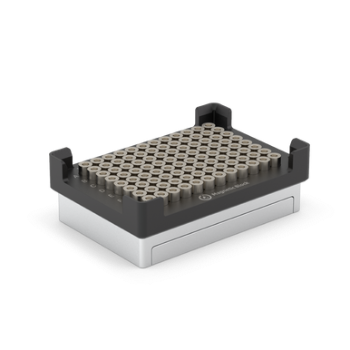

Opentrons Flex Magnetic Block (GEN 1) is a 96-well magnetic well plate holder containing static ring magnets, specifically designed for use with the Flex Robot. Use it with the Flex Gripper and skirted 96-well PCR or deep-well plates to facilitate quick and efficient separation using magnetic beads. This module is not compatible with the OT-2.
Features:
-
96 magnetic wells: High-strength neodymium ring magnets fixed to a spring-loaded bed
-
Use with gripper: For use with Opentrons Flex and Opentrons Flex Gripper; not compatible with OT-2
-
Labware compatibility: Compatible with a range of labware, various magnetic bead products, and protocols with volumes from 10 µL to 2 mL
Tech Specs:
- Dimensions: 136 × 94 × 45 mm (l/w/h)
-
- Weight: 1.13 kg
-
- Module Power: None, module is unpowered
-
- Magnet Grade: N52 neodymium
-
- Environmental Conditions: Indoor use only
-
- Ambient Temperature: 20–25 °C
-
- Relative Humidity: 30–80%, non-condensing
-
- Accommodates: A wide range of 96-well microplates, containing volumes from 10 µL to 2 mL
-
