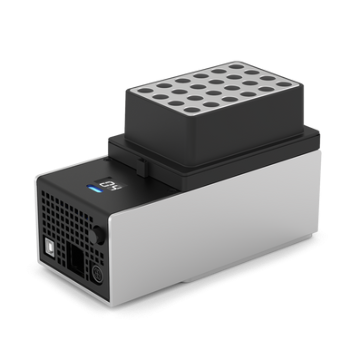

The Opentrons Temperature Module, compatible with both the OT-2 and Flex Robots, is a fully automated thermoelectric module and integrated for use with the Opentrons platform. It is used to achieve temperature changes ranging from 4 to 95°C for various applications.
The Temperature Module GEN2 is compatible with the new Opentrons Flex Robot when paired with the Flex Temperature Caddy and Calibration Adapter. The caddy sits below the deck to enable below-deck cable routing and labware placed on modules remain closer to the deck surface. The calibration adapter is used to calibrate the location of the module.
Features:
-
Includes one aluminum block: Choose a block compatible with: 1.5 mL tubes, 2 mL tubes, PCR plates, PCR strips, and most flat bottom well plates
-
Standard size: Capable of holding 96-well plates and other labware on-deck
-
Note for users: It is highly recommended that users place water between aluminum thermal blocks and plastic well tubes, strips and/or plates
- Dimensions (w/block): 194 x 90 x 126mm (l/w/h)
-
- Weight: 3.3 lbs / 1.5kg
-
- Temperature range: 4°C and 95°C
-
- Module power input: 36VDC, 6.1A
-
- Power adapter input: 100-240VAC, 50/60Hz, 4.0A/115VAC, 2.0A/230VAC
Aluminum Block Adapters:
- 1.5 / 2.0mL Tubes
- 96 Deep Well Plate
- 96-well PCR Plate
- Flat Bottom (Flex)
- Flat Bottom (OT-2)
