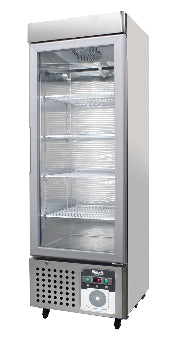

Upright, Mid-range Medical-grade Refrigerator Single Glass Door, +2°C (~) +8°C, 11.1 cu/ft

Migali ScientificSKU: MIG-G-1MRG-HC

Price:

Description

Features

  • Beautiful, modern and ergonomic design
  • Engineered to exceed CDC, USP, AAP, NIH & WHO guidelines for storing pharmaceuticals, vaccines, reagents & medical products.
  • Capillary tube, forced air refrigeration system for uniform chamber temperatures
  • R290 eco-friendly, hydrocarbon refrigerant for up to 40% energy savings
  • Digital microprocessor and temperature read-out
  • Cycle defrost
  • Fan delay switch to conserve power, maintain inside chamber temperature during door openings & reduce inside chamber humidity
  • 7/8” probe access port for 3rd party monitoring systems
  • Product simulator and bracket
  • Bright LED interior lighting
  • 304 series stainless steel interior and exterior
  • Magnetic door gasket for positive seal
  • Double pane glass doors with recessed handle
  • Door locks and keys
  • Powder coated adjustable wire shelving, 95 lbs capacity per shelf
  • High R-value 2” inch of polyurethane insulation to reduce heat transfer and increase temperature stabilization
  •  Bottom mounted condensing unit for sound reduction and ease of loading/unloading medical products (higher floor level)
  • (2) locking casters and (2) non-locking casters
  • *Vaccine models include a freestanding thermometer with a 3 year certificate of calibration

Details

The model G-1MRG-HC is the Genesis Series® 11.1 cu/ft single glass door, all stainless steel, upright refrigerator with a temperature range of +2°C to +8°C. Genesis Series® models are designed to meet and exceed CDC, USP, AAP, NIH & WHO guidelines for storing pharmaceuticals, vaccines, reagents & medical products.. The G-1MRG-HC utilizes non-toxic, R290 hydrocarbon refrigerant which increases efficiencies and energy savings up to 40%. This model is both Energy Star 4.0 and Department of Energy certified. With 11.1 cubic feet of internal volume, storing and organizing medical products is easy and convenient. The G-1MRG-HC comes standard with (4) adjustable shelves, door locks and optional stainless steel drawers. The control panel incorporates a digital microprocessor for ensuring temperature stability. The digital microprocessor includes an LED temperature read-out and hi/low visual/audible alarms. Lastly, this model offers many options such as dry contacts, 24/7 temperature recording, a variety of hi/low alarms, auto-dialers & paper chart recorders. You may customize the options and accessories according to your needs.

Cooling System

Refrigeration System Capillary Tube System
Refrigerant 134A
Cooling Range Low +2º C
Cooling Range High +8º C



Electrical System

Plug Type Nema 5-15P
Amps 3.2
H/P 1/6
Total BTU 1056
Cord Length 8 Feet, Hospital grade Receptacle



Construction Specifications

Doors 1
Door Type Double Pane Glass
Door Style Swing with Locks
Interior Width 19.75
Interior Depth 20.25
Interior Height 48
Exterior Width 24.2
Exterior Depth 24
Exterior Height 76.25
Shelves 4



Shipping Specifications

Shipping Weight 275



Options

Optional Alarms Recorders
  • MMS Alarm/Monitor: Single probe, hi/low set point, panel or wall mount, product simulator and bracket, back-up battery, dry contacts.
  • MMS 2 Alarm/Monitor: Dual probe, hi/low set point, panel or wall mount, product simulator and bracket, back-up battery, dry contacts.

  • MMS Remote Module: Remote alarm accessory for the MMS and MMS 2 Alarms

  • MTR Chart Recorder: 4” Single probe temperature chart recorder
Optional Auto Dialers
  • Auto Dialer 2: Two channel auto telephone dialer. Connects to MMS and MMS 2.

  • Auto Dialer 4: Four channel auto telephone dialer. Connects to MMS and MMS 6
Optional Paper Chart Recorder
  • MTR Chart Recorder: 4” single probe paper temperature chart recorder

  • MTR 2 Chart Recorder: 4” dual probe paper temperature chart recorder
Storage Options
  • Additional Shelf: Vinyl coated, wire steel shelf. Maximum weight of 125 lbs per shelf.

  • Stainless Steel Drawer: slide out, full depth, 304 series stainless steel drawer.

  • Removable storage basket. Basket rests on shelving and can be removed for product loading.
Back Up Battery Options

Back-up battery for entire refrigerator or freezer

  • 4 hour back-up battery
  • 12 hour back-up battery
  • 24hour back-up battery
Remote Options None
