Description

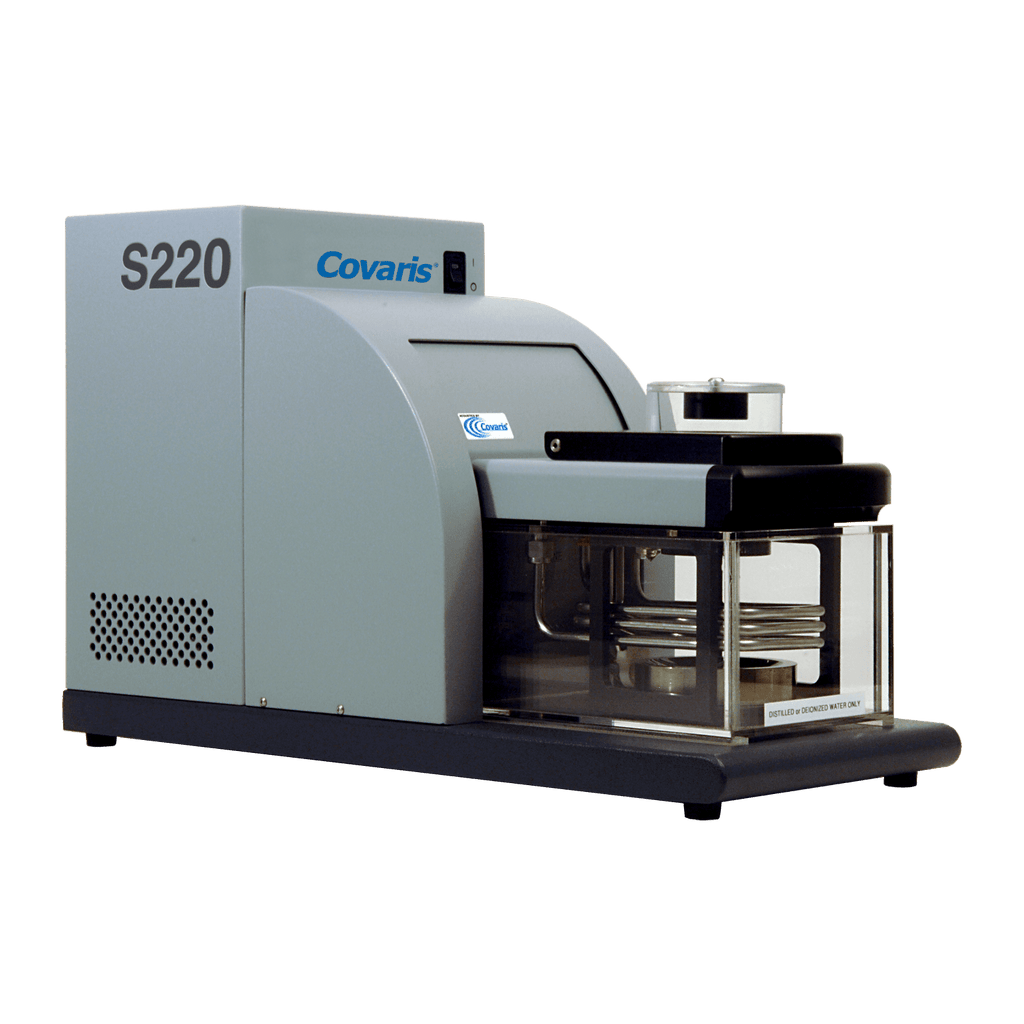

The S220 Focused-ultrasonicator is a versatile, high power system engineered for pre-analytical sample processing using Covaris’ patented Adaptive Focused Acoustics® (AFA®). Utilizing a spherical acoustic transducer, specifically designed acoustical cuvettes and advanced electronics, AFA delivers controlled energy precisely and accurately to sample volumes from 15 μl to 18 ml.
Specifications:
| Technical Specification | Description |
|---|---|
| Primary Applications | Cell lysis: mammalian, bacterial, yeast, cfDNA Extraction from Plasma, DNA Extraction from Dried Blood Spots, DNA/RNA/Chromatin Shearing, DNA/RNA/Total NA/Protein Extraction from FFPE, Tissue lysis and extraction |
| Treatment Power | 100 W Avg. Incident Power |
| Part Number | COV-500217 |
| Power Requirements | 100-240 VAC 500 VA, 50-60 Hz |
| Operating Environment | Ambient temperature: 19 °C to 25 °C (66 °F to 77 °F) Relative humidity: 30% to 70% |
| Operating Temperature | 19 °C to 25 °C (66 °F to 77 °F) |
| Safety | Complies with Low Voltage Directive 2006/95/EC. Certified to IEC/EN/UL 61010-1:2004 “Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use, Part1: General Requirements" |
| Regulatory Labeling | CE, ETL Mark (for Product Safety), WEEE |
| SonoLab Version | SonoLab 7 |
| Operating System | Windows 10 |
| WCS | Yes |
| Chiller | Chiller Required-Not included, sold separately |
| Sample Processing Capacity | Single tube processing |
| NGS Sample Volumes | 15 to 130 µl |
| Recommended Batch Size | NA |
| Covaris Consumables | microTUBE, milliTUBE, miniTUBE, Large volume consumables, Flow cells |
| Upgrade Potential | No |
| Associated Accessories | S220 Accessories |
Key Features
- Continuous Temperature Control
- Non-contact, closed vessel
- Accurate, Precise, and Controlled acoustic energy
- Accommodates a broad sample volume range
- Ultrasonic
Benefits
- No heat damage, higher recovery
- No cross contamination, no aerosols, no clean up
- Processes and protocols are highly reproducible
- Multiple applications are accommodated in a single instrument
- AFA does not require sound-proofing or special precautions
Quick Guides:
DNA miniTUBE – Blue for 220 Series
DNA miniTUBE – Clear for 220 Series
DNA miniTUBE – Red for 220 Series
DNA Shearing Quick Guide: microTUBE-15 with S220/E220 Focused-ultrasonicator.
DNA Shearing with microTUBEs (<1.5kb fragments) S220/E220
DNA Shearing with S220 Focused-ultrasonicator
RNA Shearing with S, E, and LE-Series Focused-ultrasonicators
Manual:
S-Series Flow Vessels Adapter Kit (500392)
Universal Sample Processing Of Multiple Sample Types For Reproducible Proteomic Sample Preparation
Brochures:
S220/S220x/S220R Focused-ultrasonicator
Formulation and Drug Delivery Breakthrough processing for poorly soluble API’s
