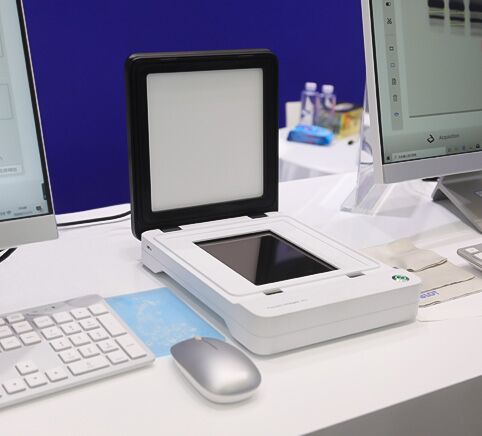

Touch Imager Pro

Name: Touch Imager Pro
Brand: E-Blot
SKU: EBL-Imager
Availability: InStock

E-BlotSKU: EBL-Imager

The World’s 1st Contact Imaging System

Get accurate images every time with our Touch Imager that takes advantage of large-scale electronic light-sensitive elements to produce clear and desirable protein images.

Highlights

Real dynamic collection range and large full-well electron capacity provides high overexposure resistance
Modular software adopts to the latest application, requiring less equipment
Easy analysis of exposure quantifies the exact signal needed on the bends
NASA-class sensors guarantee clear and crisp images every time
Stable and smart construction allows the Touch Imager to function without the need for cooling systems.

The revolutionary touch chemiluminescence imaging technology of e-Blot makes full advantage of the high sensitivity of the chemiluminescence method, overcomes many shortcomings of cold CDD imaging, and improves the imaging sensitivity, 2-3 logs higher quantitative range and efficiency, leading western imaging into a whole new era.

Revolutionary Imaging Technology

After 8 years in development, the revolutionary contact imaging technology is seen on the Touch Imager, which sets the standard for western blot imaging systems.

Ultra-Sensitivity For Desired Accuracy

By expanding the imaging chip by 130 times and improving the sensitivity by 100 times, the Touch Imager provides clearer images to help researchers see and discover more.

Red Dot Design Reward

Reddot has awarded the Touch Imager the Red Dot Design Award in 2018, noting its capability to translate complex technology into a simple design language.

New technology allows you to design the experiment with confidence

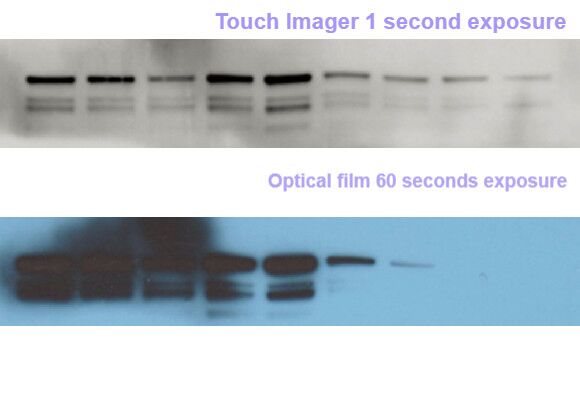

Two orders of magnitude higher than cooled CCD on sensitivity

While most x-ray film and cooled CCD western blot imaging systems may skip on weaker signals on a given samples, the e-Blot Touch Imager’s sensitive imaging chips bring them all out.

Adjustable exposure level allows for stronger bands to be regulated while weaker signals are encouraged to appear for accurate data acquisition. The enhanced sensitivity also eliminates false findings that could consume more time for samples to be repeated and images recaptured.

Wide quantitative range, strong and weak signals are clearly visible

Ultra-sensitive imaging chips come with enhanced sensors that pick up even the faintest of signals in a sample that traditional x-ray film and CCD might miss and capture them all in a single image.

Signal variation is properly displayed on the image, helping scientists retrieve valuable data from even the rarest and low-abundant protein bands that will push forward research performed on the subject.

Two orders of magnitude higher than cooled CCD on quantitative range

As image capture is conducted through direct contact rather than distance capture, the dynamic range of the Touch Imager is proportionally higher than modern cooled CCD technology that the market offers.

The extended dynamic range also ensures that all details needed from the sample is recorded accurately, displaying various bends with precision accuracy.

Obtain Results Faster

95% experiments done within seconds

Thanks to the increased sensitivity and range of our Touch Imager’s photosensitive chip, 95% of the sample is captured in just 1 second.

The captured image of the sample provides accurate results based on specified details, eliminating the need to redo the experiment and significantly cutting time consumption by a great margin. Image editing and analysis are also available in the instrument for detailed images that help in better research.

Easy-To-Use By Everyone in The Lab

New technology does not need to be difficult to use, as our Touch Imagers feature a streamlined image capturing process that users can easily adapt to.

Simply load the sample into the device, press the designated button, and the image is captured into the system and ready for analysis. We made the process easy so anyone can use the Touch Imager and expect consistent results every time.

A Better Approach To Western Blot Imaging

Touch Imaging, The Complete Revolution Against Traditional Imaging Technology

Contact chemiluminescence imaging is an imaging process in which the lens is removed, allowing the sample to direct contact with the photographic chip so the imaging process can be done in just 1 second. Moreover, the sensor chip area is 130 times larger than the conventional cold CCD imaging, and the individual pixel size area is also increased by over 400 times.

This innovative design eliminates many bottlenecks of traditional cold CCD imaging:

The western film is directly attached to the photographic chip for imaging, all signals are captured without any light loss, which greatly improves the sensitivity and speed of imaging;

The super large size of the photographic chip with ultra high signal acquisition capacity improves the sensitivity and speed of imaging;

The huge pixels can increase the quantification range by two orders of magnitude, enabling precise quantification of samples;

The new imaging technology removes any lens for imaging, thus eliminates image distortion caused by the lens and provides more accurate results.

Ultra High Sensitivity

The direct touch imaging system with no lens captures all signals without losing even the weakest bands. The super large size of the photographic chip also improves sensitivity that enables more accurate results.

Broader Dynamic Range

The new technology allows the samples for direct contacting the chip, which significantly increased the sensitivity by 2-3 logs for even the weakest signals, thus greatly reducing chances of signal loss or imaging failure.

Imaging in Just 1 Second

The whole imaging process is designed to be as simplified as possible to save your time in the lab. Just loading the sample onto the chip and press the imaging button, your imaging result is available right away.

Save Up to 90% Space

Using the latest technology available, our Touch Imager features a compact design that is sure to fit laboratories big or small. Its all-in-one solution additionally eliminates the need for other equipment or dedicated rooms, further saving space on the location.

Downloads:

Touch Imager Flyer
